Alloy Steel A234 WP 5 Pipe Fitting , also known as ASTM A234 WP P5, is a seamless ferritic alloy steel Pipe Fitting that contains chromium and molybdenum as strengthening elements. These Pipe Fitting s are specifically designed for high-temperature and high-pressure service conditions. With their superior strength and excellent thermal stability, they are widely used in critical applications where durability and reliability are paramount.
The chemical composition of Alloy Steel A234 WP 5 includes chromium, molybdenum, carbon, manganese, silicon, and trace elements that provide enhanced mechanical properties. These elements ensure excellent resistance to oxidation, creep, and corrosion under elevated temperatures. Manufactured under strict ASTM/ASME standards, A234 WP P5 Pipe Fitting s meet global quality benchmarks, making them a trusted choice for demanding industries.
Alloy Steel A234 WP5 contains a precise combination of elements such as chromium (4–6%), molybdenum (0.45–0.65%), carbon (0.15% max), and manganese (0.30–0.60%). These elements enhance the material’s resistance to oxidation, corrosion, and scaling at elevated temperatures, ensuring longevity and superior performance.
The mechanical strength of A234 WP5 is one of its defining characteristics. It offers a minimum tensile strength of 415 MPa and yield strength of 205 MPa, along with excellent elongation and hardness values. These properties make it suitable for heavy-duty applications requiring high mechanical stress and temperature endurance.
Alloy Steel A234 WP 5 Pipe Fitting offers outstanding mechanical strength, tensile capacity, and toughness at elevated service conditions. The presence of molybdenum improves strength and hardenability, while chromium enhances oxidation resistance and high-temperature stability. This combination makes P5 Pipe Fitting s suitable for prolonged exposure to extreme environments without compromising structural integrity.
Due to their robust design and high-performance capabilities, Alloy Steel A234 WP 5 Pipe Fitting s are extensively used in boilers, superheaters, heat exchangers, power generation plants, oil refineries, and petrochemical plants. These Pipe Fitting s are ideal for transporting steam, oil, and gas in critical conditions where both strength and thermal resistance are required. Their adaptability and reliability make them indispensable in the energy and process industries.

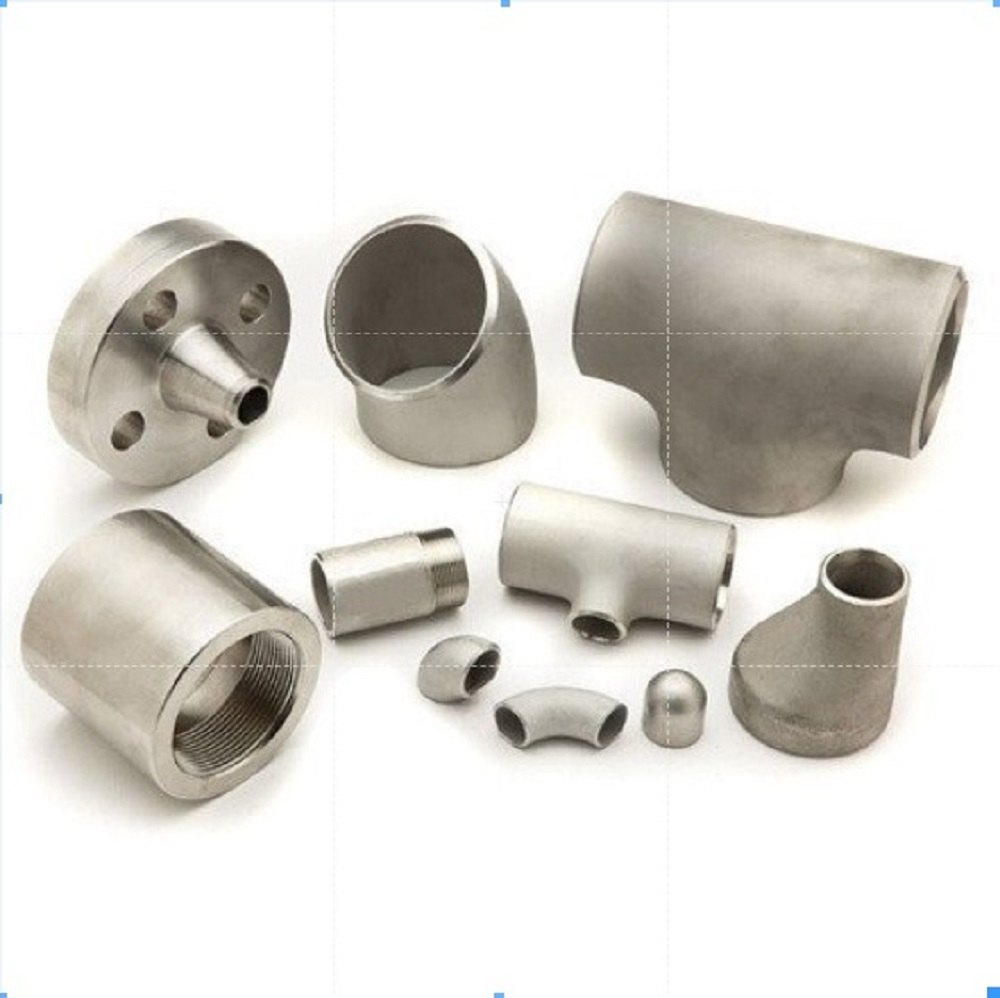

A234 WP5 fittings are available in various types and configurations to meet different piping needs. Common types include elbows, tees, reducers, caps, crosses, and stub ends. Each fitting type serves a unique purpose—such as changing the direction of flow, reducing pipe size, or terminating a pipeline—ensuring a versatile range of options for engineers and fabricators.
These fittings are produced through hot forming and heat treatment processes to achieve the desired mechanical and metallurgical properties. The fittings undergo normalizing, quenching, and tempering operations that enhance toughness, ductility, and corrosion resistance. Precision machining ensures accurate dimensions and a smooth finish for easy installation.
The addition of chromium and molybdenum in the composition provides excellent resistance against oxidation and corrosion, especially in high-temperature environments. This makes Alloy Steel A234 WP5 Pipe Fittings ideal for use in steam lines, heat exchangers, and superheater systems where exposure to elevated temperatures is continuous.
These fittings are widely used across multiple industries such as power generation, oil & gas, petrochemical, refineries, boiler manufacturing, and chemical processing. Their ability to withstand high pressure and temperature fluctuations makes them an indispensable component in critical service applications where safety and reliability are paramount.
Specification Summary:
| Specification | Details |
|---|---|
| Product | Alloy Steel A234 WP 5 Seamless Pipe Fitting |
| Standard | ASTM A234 WP / ASME SA234 WP |
| Grade | P5 |
| Type | Seamless, Hot Finished / Cold Drawn |
| Material | Ferritic Alloy Steel (Chromium-Molybdenum) |
| Size Range | 1/8” NB to 36” NB (Custom sizes on request) |
| Wall Thickness | Schedule 20 to XXS, custom thickness available |
| End Finish | Plain End (PE), Beveled End (BE), Threaded End (TE) |
| Applications | Boilers, Superheaters, Heat Exchangers, Power Plants, Refineries, Petrochemicals |
Chemical Composition (Typical ranges for SSS32760)
Note: Values are typical ranges. Final composition will be confirmed on MTC provided per lot.
| Element | Content (%) |
|---|---|
| Carbon (C) | 0.15 max |
| Manganese (Mn) | 0.30 – 0.60 |
| Phosphorus (P) | 0.025 max |
| Sulfur (S) | 0.025 max |
| Silicon (Si) | 0.50 max |
| Chromium (Cr) | 4.00 – 6.00 |
| Molybdenum (Mo) | 0.45 – 0.65 |
Mechanical Properties (Typical)
| Property | Value |
|---|---|
| Tensile Strength | 415 MPa (min) |
| Yield Strength | 205 MPa (min) |
| Elongation | 30% (min) |
| Hardness (Brinell) | 163 HBW (max) |
Equivalent Grades
| Standard | Equivalent Grade |
|---|---|
| ASTM / ASME | A234 WP / SA234 WP P5 |
| UNS | K41545 |
| DIN | 10CrMo9-10 |
| EN | 12CrMo9-10 |
| BS | 3604 Gr.620-440 |
| JIS | STPA 25 |
Dimension & Weight Chart (Selected common sizes)
Below is a representative chart showing outside diameter, wall thickness, inside diameter, cross-sectional area of metal and calculated weight per metre (kg/m). Values are calculated using density = 7.93 g/cm³ and are for guidance — use actual MTC values for procurement & engineering.
| NPS | OD (in) | OD (mm) | WT SCH 40 (in) | WT SCH 40 (mm) | Weight SCH 40 (kg/m) | WT SCH 80 (in) | WT SCH 80 (mm) | Weight SCH 80 (kg/m) |
|---|---|---|---|---|---|---|---|---|
| 1/2 | 0.840 | 21.34 | 0.109 | 2.77 | 1.27 | 0.147 | 3.73 | 1.62 |
| 3/4 | 1.050 | 26.67 | 0.113 | 2.87 | 1.68 | 0.154 | 3.91 | 2.20 |
| 1 | 1.315 | 33.40 | 0.133 | 3.38 | 2.50 | 0.179 | 4.55 | 3.24 |
| 1-1/4 | 1.660 | 42.16 | 0.140 | 3.56 | 3.39 | 0.191 | 4.85 | 4.46 |
| 1-1/2 | 1.900 | 48.26 | 0.145 | 3.68 | 4.05 | 0.200 | 5.08 | 5.41 |
| 2 | 2.375 | 60.32 | 0.154 | 3.91 | 5.44 | 0.218 | 5.54 | 7.48 |
| 2-1/2 | 2.875 | 73.02 | 0.203 | 5.16 | 8.63 | 0.276 | 7.01 | 11.41 |
| 3 | 3.500 | 88.90 | 0.216 | 5.49 | 11.29 | 0.300 | 7.62 | 15.27 |
| 4 | 4.500 | 114.30 | 0.237 | 6.02 | 16.07 | 0.337 | 8.56 | 22.32 |
| 6 | 6.625 | 168.27 | 0.280 | 7.11 | 28.27 | 0.432 | 10.97 | 42.57 |
| 8 | 8.625 | 219.07 | 0.322 | 8.18 | 42.54 | 0.500 | 12.70 | 64.64 |
| 10 | 10.750 | 273.05 | 0.365 | 9.27 | 60.31 | 0.593 | 15.06 | 95.83 |
| 12 | 12.750 | 323.85 | 0.406 | 10.31 | 79.74 | 0.687 | 17.45 | 131.86 |
Types Of Pipe Fittingss and Tubes
Tube Unions
Bite Type Tube Fittings
Stainless Steel Pipe Fittings
Forged Fsitting
Fitting
Carbon Steel Butt Weld Pipe Fittings
Frequently Asked Questions (FAQ)
What is Alloy Steel A234 WP 5 Pipe Fitting ?
Alloy Steel A234 WP 5 Pipe Fitting is a seamless ferritic alloy-steel Pipe Fitting intended for high-temperature service. It contains chromium and molybdenum, which provide excellent strength, hardness, and resistance to oxidation and corrosion at elevated temperatures.
What are the key applications of A234 WP 5 Pipe Fitting s?
These Pipe Fitting s are widely used in power plants, refineries, petrochemical plants, boiler systems, heat exchangers, and high-temperature piping systems requiring creep strength and oxidation resistance.
What are the available sizes and thicknesses?
A234 WP 5 Pipe Fitting s are available in nominal Pipe Fitting sizes (NPS) ranging from 1/2” to 24” (and higher on request) with wall thicknesses according to schedules such as SCH 40, SCH 80, SCH 160, and XXS. Custom sizes can also be manufactured.
