Alloy Steel A234 WP9 Pipe Fittings are engineered to meet the highest standards of strength, durability, and performance for high-temperature and high-pressure piping systems. These fittings are part of the ASTM A234 specification, which covers wrought carbon and alloy steel fittings designed for moderate and elevated temperature services. The WP9 grade signifies a chrome-moly alloy that offers superior resistance to oxidation and corrosion at elevated temperatures.
The Alloy Steel A234 WP9 grade contains chromium and molybdenum as its primary alloying elements, which enhance its mechanical properties and resistance to heat. Chromium improves oxidation resistance and corrosion protection, while molybdenum adds strength and helps maintain structural integrity under high stress. This unique combination makes WP9 fittings ideal for steam power plants, refineries, chemical industries, and other demanding environments.

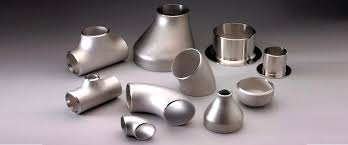

These pipe fittings are manufactured in various forms, including elbows, tees, reducers, caps, stub ends, crosses, and bends. Each fitting is designed to ensure smooth flow transitions, leak-free connections, and efficient performance in critical applications. The fittings are available in both seamless and welded configurations, catering to a wide range of installation needs and pressure classes.
Alloy Steel A234 WP9 Butt Weld Fittings are commonly used in pipelines that transport fluids and gases under extreme pressure and temperature conditions. The butt-weld construction ensures a continuous metal structure, providing superior strength and leak resistance. This design also allows for easy welding and installation without compromising mechanical properties.
In addition to butt weld fittings, A234 WP9 Socket Weld and Threaded Fittings are also available. Socket weld fittings are used for smaller-diameter pipelines requiring a strong and permanent connection, while threaded fittings provide ease of assembly and disassembly in systems that require frequent maintenance. Each type is designed to meet industry codes and specifications.
The manufacturing process of Alloy Steel A234 WP9 Fittings involves forging, heat treatment, machining, and strict quality testing. Forging improves grain structure and toughness, while heat treatment enhances hardness and mechanical properties. Every fitting undergoes rigorous inspection and testing to ensure dimensional accuracy, surface finish, and compliance with international standards.
One of the most significant advantages of WP9 Alloy Steel Fittings is their ability to maintain structural stability under high temperatures. They are specifically designed for use in temperature ranges up to 600°C, making them a top choice for superheater and reheater sections of boilers, heat exchangers, and pressure vessels in power plants.
Alloy Steel A234 WP9 Pipe Fittings exhibit exceptional weldability and formability, allowing them to be easily fabricated and installed in complex piping layouts. They can be welded using standard fusion welding techniques without preheating or post-weld heat treatment in most cases, depending on the thickness and service conditions.
Corrosion resistance is another key characteristic of these fittings. The presence of chromium and molybdenum helps form a passive oxide layer on the surface, protecting the metal from oxidation, carburization, and sulfidation in high-temperature atmospheres. This makes WP9 fittings a reliable option for chemical and petrochemical processing plants.
The mechanical properties of Alloy Steel A234 WP9 include high tensile strength, good elongation, and excellent impact resistance. These properties ensure that the fittings can handle both thermal cycling and mechanical stresses encountered in process industries. The balance of ductility and toughness allows for safe and long-lasting performance.
Specification Table
| Specification | Details |
|---|---|
| Product Name | Alloy Steel A234 WP9 Pipe Fittings |
| Standard | ASTM A234 / ASME SA234 |
| Grade | WP9 (9% Chromium, 1% Molybdenum) |
| Type | Seamless / Welded / Fabricated |
| Manufacturing Process | Forged, Heat Treated, Machined |
| Fitting Types | Elbow (45° & 90°), Tee, Reducer (Concentric / Eccentric), Cap, Stub End, Cross, Bend |
| Size Range | 1/2” NB to 48” NB |
| Wall Thickness | Sch 10, Sch 20, Sch 40, Sch 80, Sch 120, Sch 160, XXS |
| Connection Type | Butt Weld, Socket Weld, Threaded |
| Dimensions | ASME B16.9 / B16.11 / MSS-SP-43 / DIN / EN Standards |
| Surface Finish | Black, Pickled, Polished, Sand Blasted |
| End Connection | Beveled End (BW), Threaded End (NPT/BSP), Socket Weld End |
| Testing | Hydrostatic Test, PMI Test, Ultrasonic Test, Radiography, Hardness Test |
| Applicable Temperature Range | Up to 600°C (High Temperature Applications) |
| Applications | Power Generation, Petrochemical, Oil & Gas, Boiler Systems, Refinery, Heat Exchangers, Steam Lines |
| Certification | EN 10204 3.1 / 3.2, NACE MR0175, IBR Approved |
| Country of Origin | Made in India |
Chemical Composition (Typical ranges for SSS32760)
Note: Values are typical ranges. Final composition will be confirmed on MTC provided per lot.
| Element | Content (%) |
|---|---|
| Carbon (C) | 0.15% max |
| Manganese (Mn) | 0.30 – 0.60% |
| Phosphorus (P) | 0.030% max |
| Sulfur (S) | 0.030% max |
| Silicon (Si) | 0.50 – 1.00% |
| Chromium (Cr) | 8.00 – 10.00% |
| Molybdenum (Mo) | 0.90 – 1.10% |
| Nickel (Ni) | 0.40% max |
| Copper (Cu) | 0.40% max |
| Vanadium (V) | 0.08% max |
| Other Elements | Residual elements within permissible limits |
Mechanical Properties (Typical)
| Property | Value | Unit |
|---|---|---|
| Tensile Strength (Min) | 585 | MPa |
| Yield Strength (Min) | 415 | MPa |
| Elongation (Min) | 20 | % |
| Hardness (Max) | 197 | HB (Brinell) |
| Impact Strength | As per ASTM A234 requirements | - |
| Temperature Range | Up to 600°C (1112°F) | - |
| Density | 7.8 | g/cm³ |
| Melting Point | 1425 – 1510 | °C |
| Modulus of Elasticity | 200 | GPa |
| Reduction of Area (Min) | 35 | % |
Equivalent Grades
| Standard | Equivalent Grade | Description |
|---|---|---|
| ASTM / ASME | A234 WP9 | Alloy Steel Fittings for Moderate and High Temperature Service |
| ASTM Material Grade | A335 P9 / A213 T9 | Equivalent seamless alloy steel pipes and tubes grade |
| UNS Number | K90941 | Unified Numbering System designation for ASTM A234 WP9 |
| DIN Standard | 10CrMo9-10 | German (DIN) equivalent grade for Alloy Steel WP9 |
| BS Standard | 620B / 622B | British Standard equivalent grade for WP9 material |
| EN Standard | 10CrMo9-10 | European Standard equivalent for ASTM A234 WP9 |
| JIS Standard | STBA24 / STPA24 | Japanese Industrial Standard equivalent material grade |
| GOST (Russia) | 12Kh1MF | Russian equivalent for Alloy Steel A234 WP9 |
Dimension & Weight Chart (Selected common sizes)
Below is a representative chart showing outside diameter, wall thickness, inside diameter, cross-sectional area of metal and calculated weight per metre (kg/m). Values are calculated using density = 7.93 g/cm³ and are for guidance — use actual MTC values for procurement & engineering.
| Nominal Pipe Size (NPS) | Outside Diameter (mm) | Wall Thickness (mm) | Center to End (90° Elbow) (mm) | Center to End (45° Elbow) (mm) | Approx. Weight (kg) |
|---|---|---|---|---|---|
| 1/2" | 21.3 | 2.77 | 38 | 28 | 0.08 |
| 3/4" | 26.7 | 2.87 | 38 | 28 | 0.12 |
| 1" | 33.4 | 3.38 | 38 | 28 | 0.18 |
| 1 1/2" | 48.3 | 3.68 | 57 | 41 | 0.42 |
| 2" | 60.3 | 3.91 | 76 | 52 | 0.73 |
| 3" | 88.9 | 5.49 | 114 | 79 | 1.70 |
| 4" | 114.3 | 6.02 | 152 | 105 | 3.20 |
| 6" | 168.3 | 7.11 | 229 | 159 | 6.80 |
| 8" | 219.1 | 8.18 | 305 | 210 | 11.80 |
| 10" | 273.0 | 9.27 | 381 | 262 | 19.50 |
| 12" | 323.8 | 9.53 | 457 | 314 | 28.10 |
| 14" | 355.6 | 9.53 | 533 | 366 | 37.40 |
| 16" | 406.4 | 9.53 | 610 | 419 | 50.50 |
| 18" | 457.2 | 9.53 | 686 | 470 | 65.30 |
| 20" | 508.0 | 9.53 | 762 | 521 | 81.20 |
| 24" | 609.6 | 9.53 | 914 | 622 | 121.00 |
Types Of Pipe Fittingss and Tubes
Tube Unions
Bite Type Tube Fittings
Stainless Steel Pipe Fittings
Forged Fsitting
Fitting
Carbon Steel Butt Weld Pipe Fittings
Frequently Asked Questions (FAQ)
1. What is Alloy Steel A234 WP9 Pipe Fitting?
Alloy Steel A234 WP9 Pipe Fitting is a chromium-molybdenum alloy steel fitting designed for high-temperature and high-pressure applications. It complies with ASTM A234 specifications and is commonly used in power generation, petrochemical, and oil & gas industries.
2. What does “WP9” mean in ASTM A234 WP9?
The “WP9” designation refers to the specific grade within the ASTM A234 standard, containing approximately 9% Chromium and 1% Molybdenum. This chemical composition enhances the alloy’s strength, oxidation resistance, and heat stability.
3. What types of Alloy Steel A234 WP9 fittings are available?
Common types include 45° and 90° Elbows, Equal and Reducing Tees, Concentric and Eccentric Reducers, Caps, Stub Ends, Crosses, and Bends. These fittings are available in seamless, welded, and fabricated forms.
4. Where are Alloy Steel A234 WP9 Pipe Fittings used?
They are widely used in industries such as power plants, refineries, boilers, heat exchangers, oil and gas pipelines, and chemical processing systems—especially in applications that demand resistance to high temperature and pressure.
5. What are the key standards applicable to A234 WP9 fittings?
Relevant standards include ASTM A234 / ASME SA234, ASME B16.9 (Butt Weld Fittings), ASME B16.11 (Socket Weld & Threaded Fittings), and MSS-SP-43 for dimensional accuracy and performance reliability.
