Inconel 800 800H 800HT Sheet Plate & Coil Manufacturers in India, Inconel 800 800H 800HT Sheet Plate & Coils Price, SS Plate Price per kg, Inconel 800 800H 800HT Sheet Plate & Coil Plate suppliers, Inconel 800 800H 800HT Sheet Plate & Coils Price, Inconel 800 800H 800HT Sheet Plate & Coil Suppliers in UAE, Inconel 800 800H 800HT Sheet Plate & Coil Suppliers UK, Inconel 800 800H 800HT Sheet Plate & Coil Suppliers in Saudi Arabia, Inconel 800 800H 800HT Sheet Plate & Coil Suppliers in Qatar, Inconel 800 800H 800HT Sheet Plate & Coil Suppliers Australia.

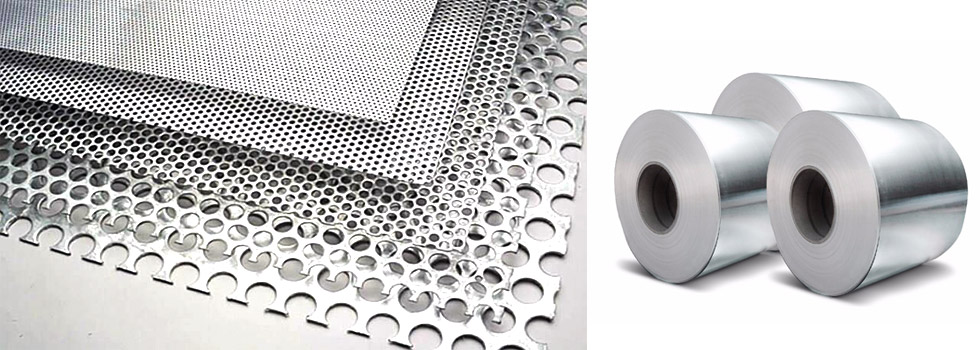

Inconel 800 800H 800HT Sheet, Plate & Coil is a high-performance nickel-chromium alloy known for its excellent resistance to oxidation and corrosion. It is widely used in industrial applications where high temperature and corrosive environments are common, such as chemical processing, aerospace, and power generation.
The alloy’s superior mechanical properties, including high tensile strength and durability, make Inconel 800 800H 800HT an ideal choice for manufacturing sheets, plates, and coils. These forms are versatile and can be easily fabricated into components for various industrial applications.
Inconel 800 800H 800HT Sheets are available in different thicknesses and dimensions, making them suitable for custom applications. They are commonly used in heat exchangers, furnace components, and chemical reactors due to their exceptional thermal stability.
Inconel 800 800H 800HT Plates offer excellent resistance to high-temperature corrosion and are often used in flanges, pressure vessels, and structural components in chemical and petrochemical industries. Their high strength at elevated temperatures ensures long-lasting performance.
Inconel 800 800H 800HT Coils are widely utilized in applications requiring continuous processing or forming, such as in industrial equipment and heat treatment systems. Coils can be cut, rolled, and formed into custom parts as per engineering requirements.
The chemical composition of Inconel 800 800H 800HT includes nickel, chromium, and iron, which contribute to its outstanding corrosion resistance and mechanical strength. The alloy maintains stability in both oxidizing and reducing environments, including acidic and alkaline solutions.
Inconel 800 800H 800HT is highly resistant to scaling and oxidation, even at temperatures up to 1200°F (650°C). This property makes it suitable for use in high-temperature furnace components, combustion chambers, and aerospace engine parts.
Fabrication of Inconel 800 800H 800HT Sheets, Plates, and Coils can be done using standard techniques such as welding, machining, and forming. Proper handling and heat treatment ensure optimal performance and longevity of the alloy components.
Specification Table
| Grade | Standard | Type | Form | Finish | Size Range | Applications |
|---|---|---|---|---|---|---|
| Inconel 800 | ASTM B407 / B409 / B408 | Nickel-Chromium Alloy | Sheet / Plate / Coil | Hot Rolled / Cold Rolled | Thickness: 0.5mm – 100mm Width: 1000mm – 2000mm Length: As per requirement |
Furnace components, heat exchangers, chemical processing equipment |
| Inconel 800H | ASTM B407 / B409 / B408 | Nickel-Chromium Alloy (High-Temperature) | Sheet / Plate / Coil | Hot Rolled / Annealed | Thickness: 1mm – 75mm Width: 1000mm – 2000mm Length: As per requirement |
High-temperature applications, chemical processing, nuclear components |
| Inconel 800HT | ASTM B407 / B409 / B408 | Nickel-Chromium Alloy (Extra-High Temperature) | Sheet / Plate / Coil | Hot Rolled / Annealed | Thickness: 2mm – 50mm Width: 1000mm – 2000mm Length: As per requirement |
Furnace components, high-temperature heat exchangers, aerospace parts |
Chemical Composition (Typical ranges for SSSheet)
Note: Values are typical ranges. Final composition will be confirmed on MTC provided per lot.
| Grade | Ni | Cr | Fe | C | Mn | Si | Cu | Other Elements |
|---|---|---|---|---|---|---|---|---|
| Inconel 800 | 30–35 | 19–23 | Balance (~39) | ≤0.15 | ≤1.0 | ≤1.0 | ≤0.5 | Ti + Al ≤0.7 |
| Inconel 800H | 30–35 | 19–23 | Balance (~39) | ≤0.06 | ≤1.0 | ≤1.0 | ≤0.5 | Ti + Al ≤0.7 |
| Inconel 800HT | 30–35 | 19–23 | Balance (~39) | ≤0.10 | ≤1.0 | ≤1.0 | ≤0.5 | Ti + Al ≤0.7 |
Mechanical Properties (Typical)
| Grade | Condition | Tensile Strength (MPa) | Yield Strength (MPa) | Elongation (%) | Hardness (HRB) |
|---|---|---|---|---|---|
| Inconel 800 | Annealed | 550–750 | 275–400 | 40–50 | 75–90 |
| Inconel 800H | Annealed | 550–700 | 275–410 | 35–45 | 75–95 |
| Inconel 800HT | Annealed | 550–700 | 310–450 | 30–40 | 80–95 |
Equivalent Grades
| Inconel Grade | ASTM / ASME | UNS | EN / DIN | JIS |
|---|---|---|---|---|
| Inconel 800 | ASTM B407 / B409 / B408 | UNS N08800 | X8NiCrAlNb21-21 | なし (Not specified) |
| Inconel 800H | ASTM B407 / B409 / B408 | UNS N08810 | X8NiCrAlNb21-21 | なし (Not specified) |
| Inconel 800HT | ASTM B407 / B409 / B408 | UNS N08811 | X8NiCrAlNb21-21 | なし (Not specified) |
Dimension & Weight Chart (Selected common sizes)
Below is a representative chart showing outside diameter, wall thickness, inside diameter, cross-sectional area of metal and calculated weight per metre (kg/m). Values are calculated using density = 7.93 g/cm³ and are for guidance — use actual MTC values for procurement & engineering.
| Thickness (mm) | Width (mm) | Length (mm) | Weight per Sheet / Coil (kg) | Notes |
|---|---|---|---|---|
| 0.5 – 3 | 1000 – 1500 | 1000 – 3000 | Approx. 4 – 18 | Thin sheets suitable for chemical equipment & heat exchangers |
| 3 – 10 | 1000 – 1500 | 2000 – 4000 | Approx. 24 – 120 | Medium thickness sheets & plates for industrial use |
| 10 – 50 | 1000 – 2000 | 2000 – 6000 | Approx. 200 – 1200 | Heavy plates for furnace, nuclear & high-temperature applications |
| 0.5 – 50 | 1000 – 2000 | Coiled lengths as per requirement | Weight varies with thickness and width | Coils for rolling, forming, or custom fabrication |
Common Types Of Sheets
Shim Sheet
Perforated Sheet
Chequered Plate
Coil
Strips
Foil
Hot Rolled Sheets
Cold Rolled Plate
Matt PVC Sheet
Frequently Asked Questions (FAQ)
What is Inconel 800, 800H, 800HT?
Inconel 800 is a nickel-iron-chromium alloy with excellent resistance to oxidation and carburization at high temperatures. 800H and 800HT are high-temperature variants with controlled carbon content for better mechanical properties at elevated temperatures.
What forms are available?
Inconel 800, 800H, 800HT is available in sheets, plates, and coils in various thicknesses, widths, and lengths.
What are the typical applications?
These alloys are widely used in chemical processing, heat exchangers, furnace components, nuclear reactors, and aerospace applications due to their high-temperature strength and corrosion resistance.
What is the chemical composition?
The alloys consist mainly of Nickel (30–35%), Chromium (19–23%), and Iron (balance), with small amounts of Carbon, Manganese, Silicon, Copper, and Titanium/Aluminum depending on the grade.
What are the mechanical properties?
Inconel 800 series alloys have tensile strength ranging 550–750 MPa, yield strength 275–450 MPa, elongation 30–50%, and hardness 75–95 HRB, depending on the grade and heat treatment.
