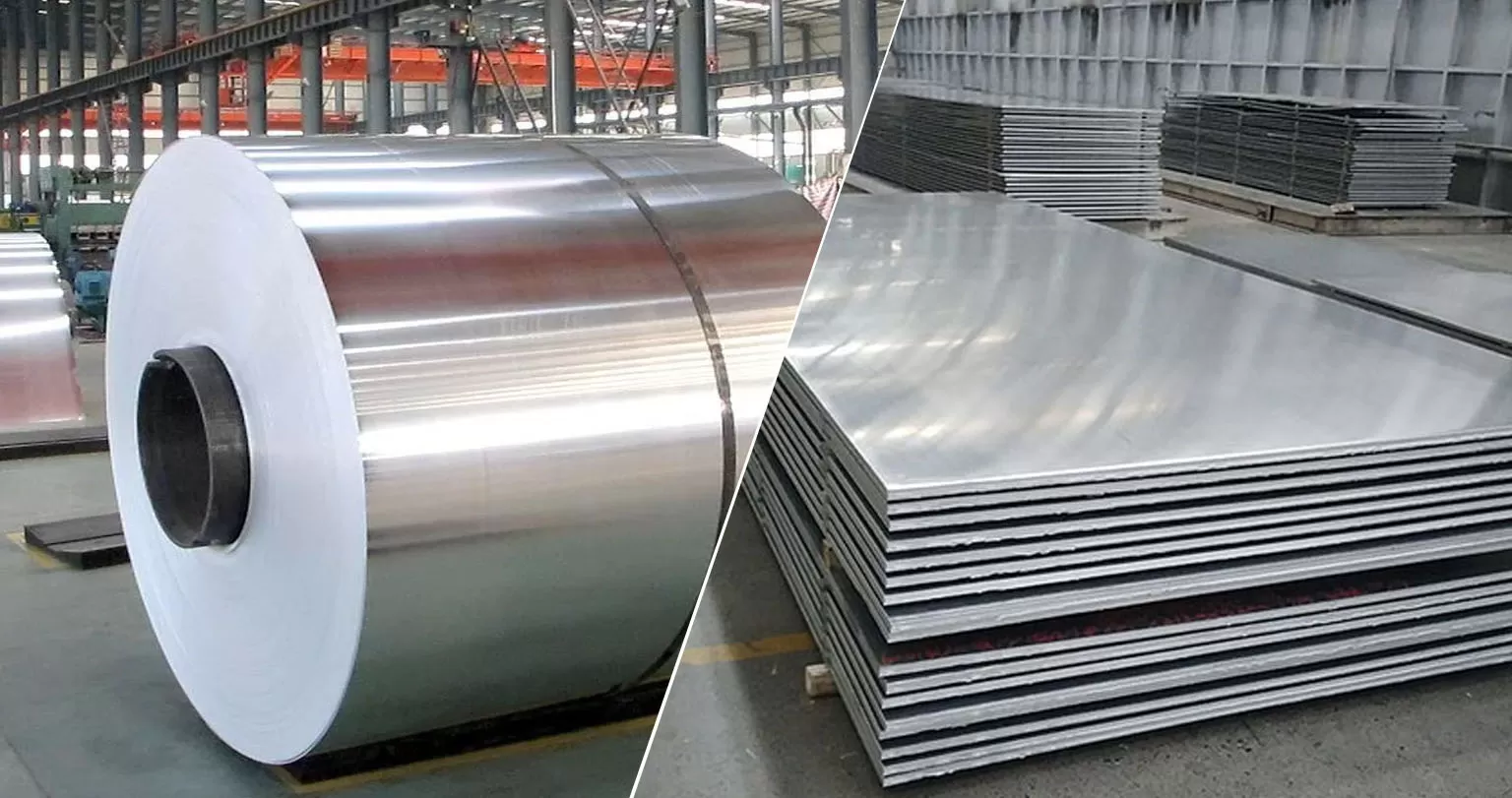

Monel K500 Sheet, Plate & Coil are manufactured from a high-strength nickel-copper alloy that combines the corrosion resistance of Monel 400 with the added advantage of greater tensile and yield strength. This alloy is strengthened by the addition of aluminum and titanium, which allows it to be precipitation-hardened. Monel K500 is ideal for applications requiring superior resistance to saltwater and harsh chemical environments.
The outstanding corrosion resistance of Monel K500 makes it highly suitable for marine and chemical processing industries. It performs exceptionally well in seawater, acids, and alkalis, maintaining structural integrity even under high pressure and temperature conditions. This durability extends the service life of components made from Monel K500 Sheet, Plate & Coil.
Monel K500 Sheet, Plate & Coil exhibit excellent mechanical properties, including high tensile and yield strength, hardness, and fatigue resistance. The alloy retains its strength and toughness even at sub-zero temperatures, making it ideal for cryogenic applications and offshore structures exposed to extreme environments.
These products are widely used in pump shafts, marine propeller shafts, fasteners, valves, heat exchangers, and oil-well tools. The combination of high strength and corrosion resistance makes Monel K500 an excellent choice for applications in both marine and chemical processing plants where long-term reliability is essential.
Monel K500 offers remarkable resistance to stress-corrosion cracking in most fresh and saltwater conditions. Unlike many stainless steels, it does not suffer from pitting or crevice corrosion. This makes Monel K500 Sheet, Plate & Coil a preferred material for shafts, pump parts, and fasteners in corrosive marine environments.
The alloy is easily fabricated by standard procedures such as hot or cold working, machining, and welding. Monel K500 Sheets and Plates can be readily formed into coils or custom-cut to meet specific design requirements. The heat treatment process can further enhance its hardness and strength, ensuring optimal performance in critical applications.
In terms of specifications, Monel K500 conforms to standards such as ASTM B127 and ASME SB127 for sheets and plates. The material is available in a range of thicknesses and dimensions, ensuring compatibility with diverse industrial needs. All supplied materials come with test certificates verifying their chemical and mechanical properties.
Monel K500 Sheet, Plate & Coil are often supplied in both annealed and age-hardened conditions. The age-hardening process significantly increases mechanical strength without compromising corrosion resistance. This dual benefit provides designers with flexibility when selecting materials for demanding projects.
Specification Table
| Specification | Details |
|---|---|
| Standard | ASTM B127 / ASME SB127 |
| UNS Number | N05500 |
| Werkstoff Nr. | 2.4375 |
| Equivalent Grade | Alloy K500, Nickel Alloy K500, Monel® K-500 |
| Form | Sheet, Plate, Coil |
| Thickness | 0.3 mm to 120 mm |
| Width | 1000 mm to 2500 mm |
| Length | 2000 mm to 6000 mm (Custom sizes available) |
| Finish | Hot Rolled, Cold Rolled, 2B, BA, No.1, No.4, Matte, Bright Polished |
| Hardness | Soft, Half Hard, Hard, Spring Hard, Age-Hardened |
| Density | 8.44 g/cm³ |
| Melting Point | 1315°C (2400°F) |
| Tensile Strength | Up to 1100 MPa (160 ksi) when age-hardened |
| Corrosion Resistance | Excellent in seawater, alkalis, and non-oxidizing acids |
| Applications | Marine shafts, pump parts, fasteners, valves, chemical equipment, offshore components |
| Certification | EN 10204 3.1 / 3.2, NACE MR0175, PED Approved |
Chemical Composition (Typical ranges for SSSheet)
Note: Values are typical ranges. Final composition will be confirmed on MTC provided per lot.
| Element | Content (%) |
|---|---|
| Nickel (Ni) | 63.0 min |
| Copper (Cu) | 27.0 – 33.0 |
| Aluminum (Al) | 2.30 – 3.15 |
| Titanium (Ti) | 0.35 – 0.85 |
| Iron (Fe) | 2.0 max |
| Manganese (Mn) | 1.5 max |
| Silicon (Si) | 0.5 max |
| Carbon (C) | 0.25 max |
| Sulfur (S) | 0.01 max |
Mechanical Properties (Typical)
| Property | Condition | Value |
|---|---|---|
| Tensile Strength | Annealed | ~ 790 MPa (115 ksi) |
| Tensile Strength | Age-Hardened | Up to 1100 MPa (160 ksi) |
| Yield Strength (0.2% Offset) | Age-Hardened | Up to 760 MPa (110 ksi) |
| Elongation | In 50 mm (2 in.) | 20% min |
| Hardness | Age-Hardened | Approx. 33–38 HRC |
| Density | – | 8.44 g/cm³ |
| Melting Point | – | 1315°C (2400°F) |
| Modulus of Elasticity | – | 179 GPa (26 × 10⁶ psi) |
| Poisson’s Ratio | – | 0.32 |
| Impact Strength | At Room Temperature | Excellent (no ductile-to-brittle transition) |
Equivalent Grades
| Standard | Equivalent Grade |
|---|---|
| UNS | N05500 |
| Werkstoff Nr. | 2.4375 |
| EN | NiCu30Al |
| BS | NA18 |
| AFNOR | N-Cu30-2-0.5 |
| GOST | МНЖМц 28-2.5-1.5 |
| JIS | NW5500 |
| Trade Names | Monel® K500, Alloy K500, Nickel Alloy K500 |
Dimension & Weight Chart (Selected common sizes)
Below is a representative chart showing outside diameter, wall thickness, inside diameter, cross-sectional area of metal and calculated weight per metre (kg/m). Values are calculated using density = 7.93 g/cm³ and are for guidance — use actual MTC values for procurement & engineering.
| Thickness (mm) | Sheet Size (mm) | Weight (kg/m²) |
|---|---|---|
| 0.5 | 1000 x 2000 | 4.22 |
| 1.0 | 1000 x 2000 | 8.44 |
| 1.5 | 1250 x 2500 | 12.66 |
| 2.0 | 1250 x 2500 | 16.88 |
| 3.0 | 1500 x 3000 | 25.32 |
| 4.0 | 1500 x 3000 | 33.76 |
| 5.0 | 1500 x 3000 | 42.20 |
| 6.0 | 1500 x 3000 | 50.64 |
| 8.0 | 1500 x 3000 | 67.52 |
| 10.0 | 1500 x 3000 | 84.40 |
| 12.0 | 1500 x 3000 | 101.28 |
| 16.0 | 1500 x 3000 | 135.04 |
| 20.0 | 1500 x 3000 | 168.80 |
| 25.0 | 1500 x 3000 | 211.00 |
Common Types Of Sheets
Shim Sheet
Perforated Sheet
Chequered Plate
Coil
Strips
Foil
Hot Rolled Sheets
Cold Rolled Plate
Matt PVC Sheet
Frequently Asked Questions (FAQ)
What is Monel K500?
Monel K500 is a precipitation-hardened nickel-copper alloy that combines the excellent corrosion resistance of Monel 400 with higher strength and hardness achieved through aluminum and titanium additions. It offers outstanding resistance to seawater, chemical solutions, and marine environments.
What are the main applications of Monel K500 Sheet, Plate & Coil?
Monel K500 Sheets, Plates, and Coils are widely used in marine engineering, pump shafts, fasteners, valves, chemical process equipment, oil and gas components, and heat exchangers. Its superior mechanical strength and corrosion resistance make it ideal for demanding environments.
What standards are Monel K500 Sheets and Plates manufactured to?
They are produced in accordance with ASTM B127 and ASME SB127 standards, ensuring high quality and consistent performance. Equivalent designations include UNS N05500 and Werkstoff Nr. 2.4375.
What is the density and melting point of Monel K500?
Monel K500 has a density of approximately 8.44 g/cm³ and a melting point of about 1315°C (2400°F). These properties make it suitable for high-temperature and high-stress industrial applications.
Can Monel K500 be welded and machined easily?
Yes, Monel K500 can be welded using gas-tungsten arc, gas-metal arc, or shielded metal arc processes. It can also be machined using conventional methods, although tools must be sharp and speeds moderate due to the material’s hardness and strength.
